| ENGINE
+
|
| Type | 700: 55 hp ( 41 kW ), Rotax® 799.9 cc, V-twin, liquid cooled |
| Fuel Delivery System | Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI) |
| Transmission | PDrive primary CVT with engine braking and Electronic Drive Belt Protection L / H / N / R / P |
| Drive Train | Selectable 2WD / 4WD with Visco-Lok† auto-locking front Differential |
| Power Steering | N/A |
| Driving assistance | Electronic Hill Descent Control |
| Speed category | Up to 60 km/h |
| SUSPENSIONS
+
|
| Front Suspension | Double A-arm with sway bar / 10 in. (25.4 cm) travel |
| Front Shocks | Twin tube gas charged shocks |
| Rear Suspension | TTA with sway bar / 10.5 in. (26.7 cm) travel |
| Rear Shocks | Twin tube gas charged shocks |
| TIRES / WHEELS
+
|
| Front Tires | Carlisle ACT 26 x 8 x 12 in. (66 x 20.3 x 30.5 cm) |
| Rear Tires | Carlisle ACT 26 x 9 x 12 in. (66 x 22.9 x 30.5 cm) |
| Wheels | 12-in. steel |
| BRAKES
+
|
| Front | Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers |
| Rear | Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers |
| DIMENSIONS
+
|
| L x W x H | 118 x 50 x 69 in. (300.5 x 127 x 175.3 cm) |
| Wheelbase | 230.1 cm |
| Ground Clearance | 25.4 cm |
| Dry Weight | 596 kg |
| Cage | ROPS-approved profiled cage. Certified ISO 3471. |
| Chassis Cage | Profiled cage ROPS approved |
| Storage Capacity | Total: 5.3 gal (20.2 L)
Glove Box: 4.1 gal (15.6 L)
Driver storage: 0.4 gal (1.5 L)
Center console and Cup holders: 0.8 gal (3.1 L) |
| Cargo Box Capacity | 136 kg |
| Towing Capacity | 680 kg |
| Fuel Capacity | 38 L |
| FEATURES
+
|
| Gauge | 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO™ mode, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature |
| Instrumentation | Lighter type DC outlet in console (20-A) |
| Magneto | 650W |
| Lighting | Two 55 W reflectors and LED tail lights |
| T-category features | Horn, flashers and position lamps, mirrors, hook on front metal bumper |
| Winch | Prewired for available winch |
| Steering Wheel | Adjustable tilt steering |

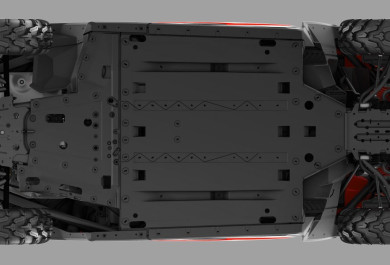

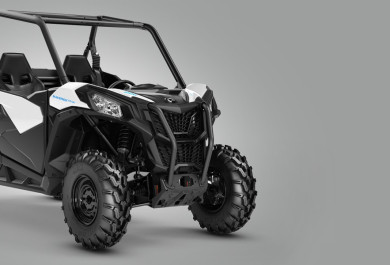

| Protection | Integrated front steel bumper, injected full body skid plates, mudguards, mudflaps |
| Hitch Type | 2-in. hitch receiver with tow ball, 7-pin trailer
connection (12V) |
| WARRANTY
+
|
| Factory | 2 years BRP limited warranty |
