ENGINE
+
|
Fuel Delivery System | Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI) |
Transmission | PDrive primary CVT with engine braking and Electronic Drive Belt Protection L / H / N / R / P |
Drive Train | Selectable 2WD / 4WD with Visco-Lok† auto-locking front Differential |
Power Steering | N/A |
Driving assistance | Electronic Hill Descent Control |
Speed category | Up to 60 km/h |

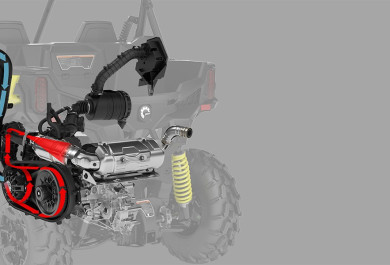

Type | 700: 55 hp ( 41 kW ), Rotax® 799.9 cc, V-twin, liquid cooled |
SUSPENSIONS
+
|
Front Shocks | Twin tube gas charged shocks |
Rear Suspension | TTA with sway bar / 10.5 in. (26.7 cm) travel |
Rear Shocks | Twin tube gas charged shocks |
Front Suspension | Double A-arm with sway bar / 10 in. (25.4 cm) travel |
TIRES / WHEELS
+
|
Rear Tires | Carlisle ACT 26 x 9 x 12 in. (66 x 22.9 x 30.5 cm) |
Wheels | 12-in. steel |
Front Tires | Carlisle ACT 26 x 8 x 12 in. (66 x 20.3 x 30.5 cm) |
BRAKES
+
|
Rear | Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers |
Front | Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers |
DIMENSIONS
+
|
L x W x H | 118 x 50 x 69 in. (300.5 x 127 x 175.3 cm) |
Wheelbase | 230.1 cm |
Ground Clearance | 25.4 cm |
Dry Weight | 596 kg |
Cage | ROPS-approved profiled cage. Certified ISO 3471. |
Chassis Cage | Profiled cage ROPS approved |
Storage Capacity | Total: 5.3 gal (20.2 L)
Glove Box: 4.1 gal (15.6 L)
Driver storage: 0.4 gal (1.5 L)
Center console and Cup holders: 0.8 gal (3.1 L) |
Cargo Box Capacity | 136 kg |
Towing Capacity | 680 kg |
Fuel Capacity | 38 L |
FEATURES
+
|
Gauge | 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO™ mode, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature |
Instrumentation | Lighter type DC outlet in console (20-A) |
Magneto | 650W |
Lighting | Two 55 W reflectors and LED tail lights |
T-category features | Horn, flashers and position lamps, mirrors, hook on front metal bumper |
Winch | Prewired for available winch |
Steering Wheel | Adjustable tilt steering |

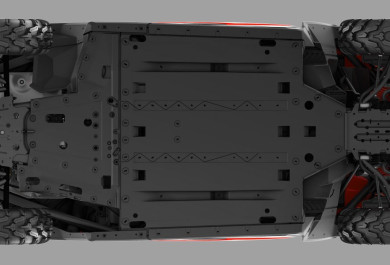

Protection | Integrated front steel bumper, injected full body skid plates, mudguards, mudflaps |
Hitch Type | 2-in. hitch receiver with tow ball, 7-pin trailer
connection (12V) |
WARRANTY
+
|
Factory | 2 years BRP limited warranty |
