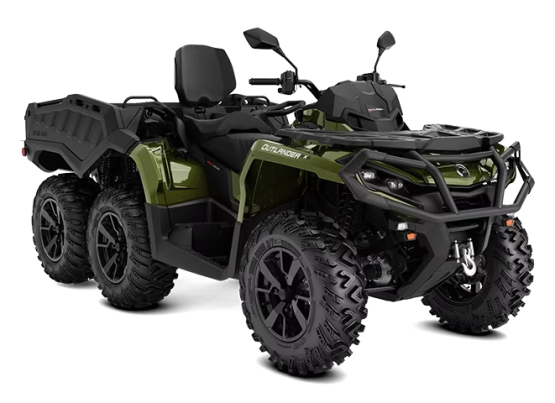

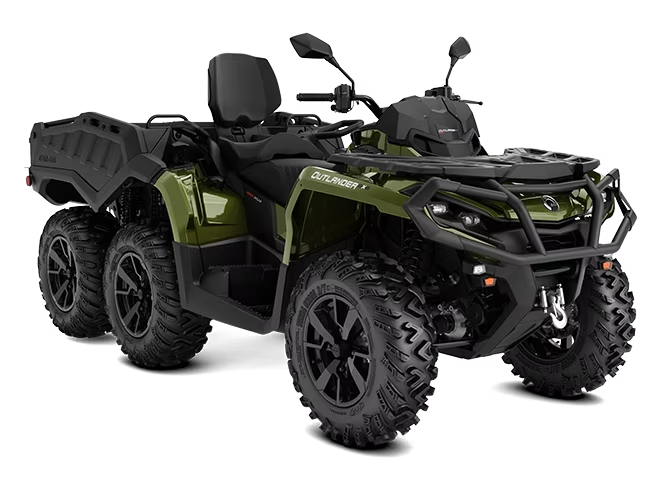

CAN-AM OUTLANDER MAX 6X6 XU+ 1000 T || 2024

back to OUTLANDER 6x6 || 2024

High Performance Work Quad

CAN-AM OUTLANDER MAX 6X6 XU+ 1000 T || 2024

Product Code: 0004LRB00
£22,799.00

Outlander MAX 6x6 XU+ 650/1000T, there's nothing like the additional torque from a 6x6 being driven by our powerful Rotax 1000 V-Twin engines —this is the hardest-working ATV we build. XU+ Package features fill even the highest standards — all ready for your next challenge.

Add To Order

Can-Am Outlander Max 6x6 XU+ 650/1000T highlights

EC homologated T category

+ up to 60 km/h

Rotax® V-Twin engine
Arched double A-arm front suspension with front sway bar
Continuously Variable Transmission (CVT) with extra-low L-gear
26-in. (66 cm) Carlisle ACT HD 6-ply tires
3,500-lb (1,588 kg) winch • Speed limiter
700-lb (318 kg) capacity Dual-Level cargo box with modular accessories
Tri-Mode Dynamic Power Steering (DPS™️)
Heavy-Duty front bumper
Heated grips & throttle
Double Torsional Trailing arm Independent (TTI2) rear suspension
Quick release sway bar
12 in. (30.5 cm) cast-aluminum wheels
Relocated air intakes
High-strength, multifunction racks with LinQ™️ quick-attach accessory system
RF Digitally Encoded Security System (D.E.S.S.™️)

SPECIFICATIONS

ENGINE +
Engine	650
Engine displacement	650
Type	650: 59 hp ( 44 kW ), Rotax 649.6 cc V-twin, liquid cooled
Fuel Delivery System	Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission	CVT, P / R / N / H / Extra low L, standard engine braking
Drive Train	Selectable 4WD / 6WD with Visco-Lok QE† auto-locking front Differential Selectable 4WD / 6WD with Visco-Lok‡ QE auto-locking front Differential
Power Steering	Tri-Mode Dynamic Power Steering (DPS)
SUSPENSION +
Front Suspension	Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks	Oil
Rear Suspension	Double Torsional Trailing arm Independent (TTI2) with quick-release sway bar 9.9 in. (25,1 cm) travel
Rear Shocks	Oil
TIRES/WHEELS +
Front Tires	Carlisle ACT HD 26 x 8 x 12 in. (66 x 20.3 x 30.5 cm)
Rear Tires	Carlisle ACT HD 26 x 10 x 12 in. (66 x 25.4 x 30.5 cm)
Wheels	12 in. cast-aluminum
BRAKES +
Front	Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear	Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
DIMENSIONS / CAPACITIES +
L x W x H	297 x 122 x 126 cm
Wheel Base	228 cm
Ground Clearance	11 in. (27.9 cm)
Dry Weight	650: 595
Rack Capacity	Front: 100 lb (45 kg) / Rear: 700 lb (318 kg)
Storage Capacity	Dual-level cargo box with sidewalls and tailgate Rear: 18.5 gal (70 L)
Towing Capacity	907 kg trailer with brakes and 674 kg trailer without brakes
Fuel Capacity	5.4 gal (20.5 L)
Seat Height	34.5 in. (87.7 cm)
FEATURES +
Seat	Reinforced seat skin
Protection	Heated hand grips
Gauge	4.5-in. digital display : Speedometer, tachometer, odometer, trip & hour meters,gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge & clock
Instrumentation	Lighter type DC outlet in console, standard connector in the back (15-A)
Anti Theft System	Digitally Encoded Security System (D.E.S.S.™)
Lighting	230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch	3,500-lb (1,588 kg) winch
WARRANTY +
Factory	2 years BRP limited warranty
